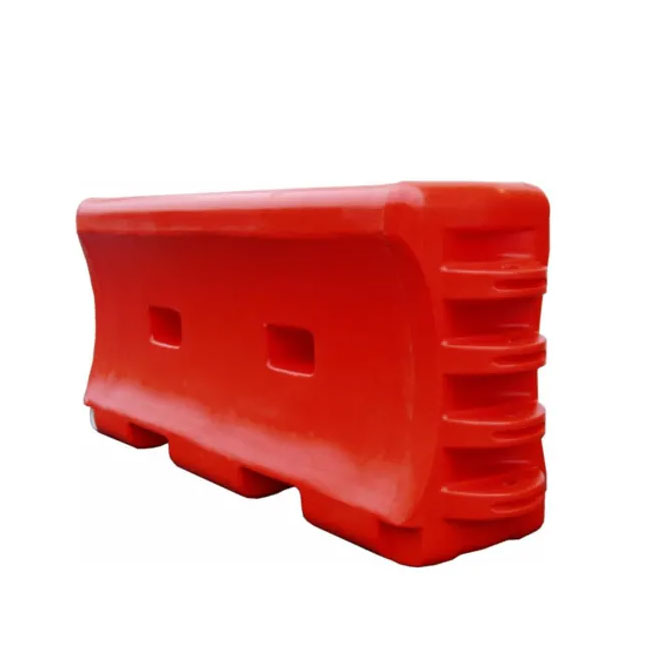

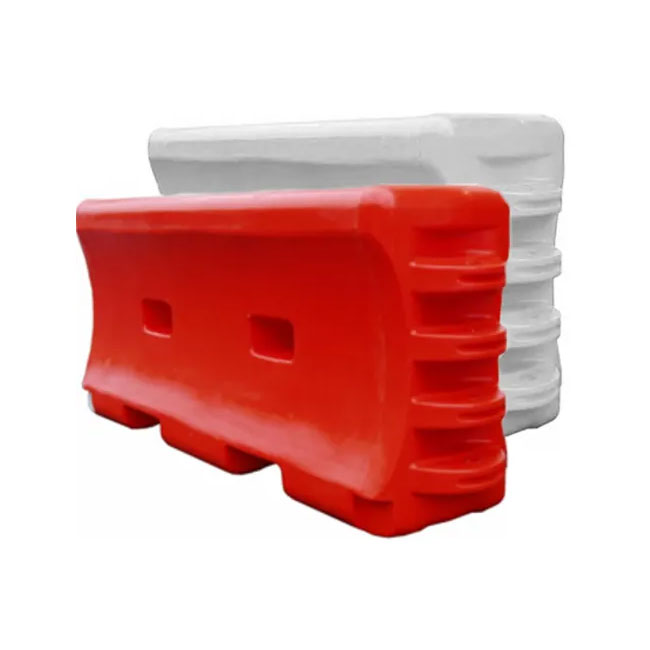

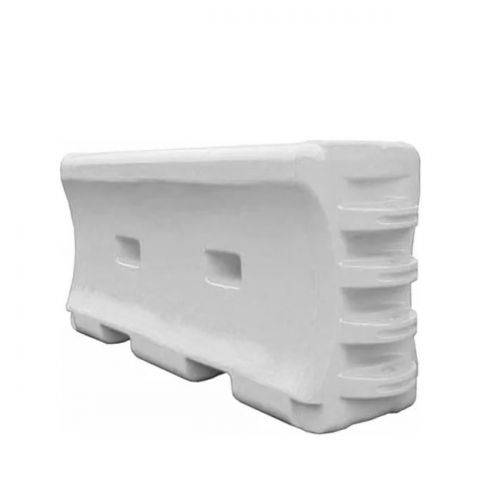

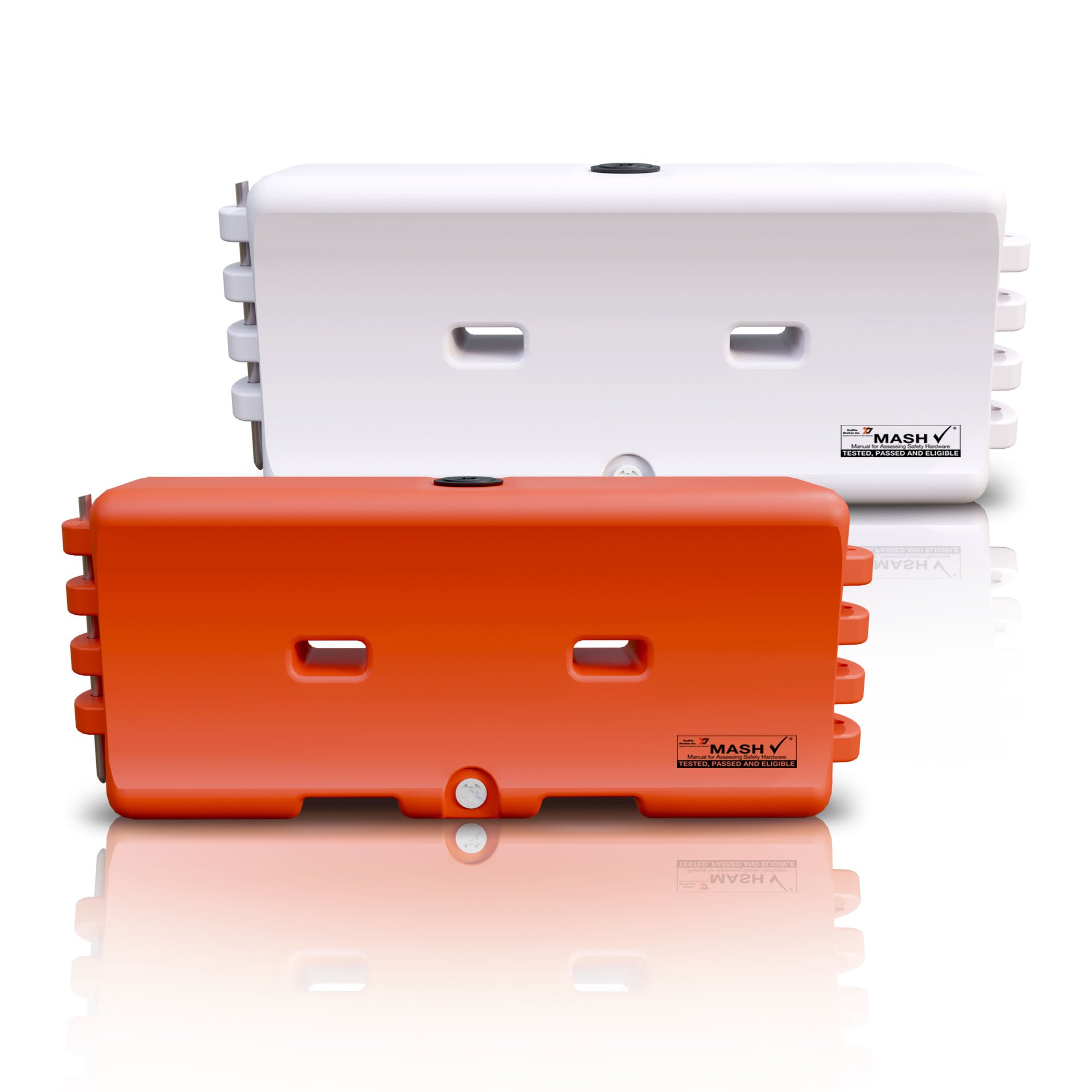

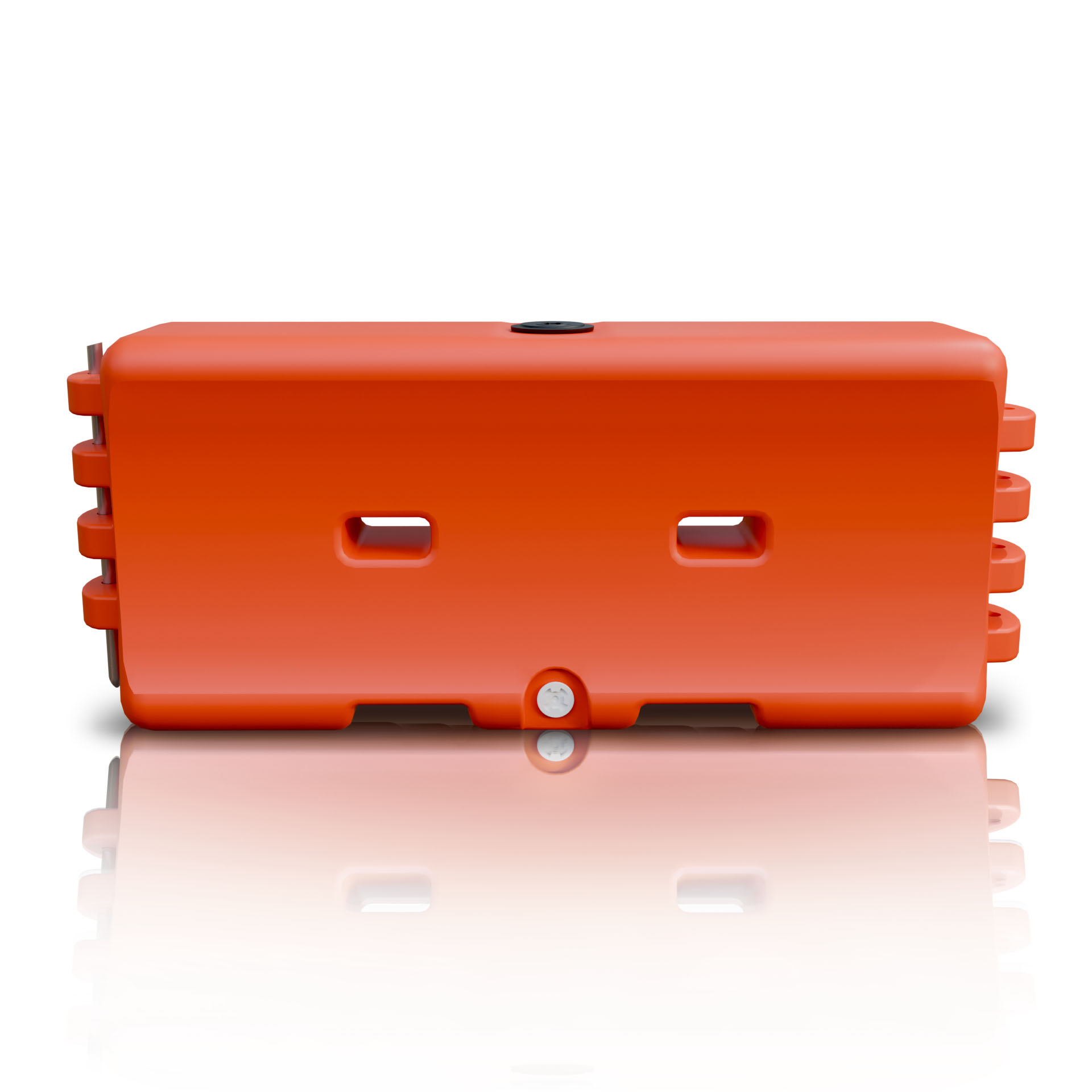

Water Wall - Water Fillable Jersey Barrier - 45032-VAR

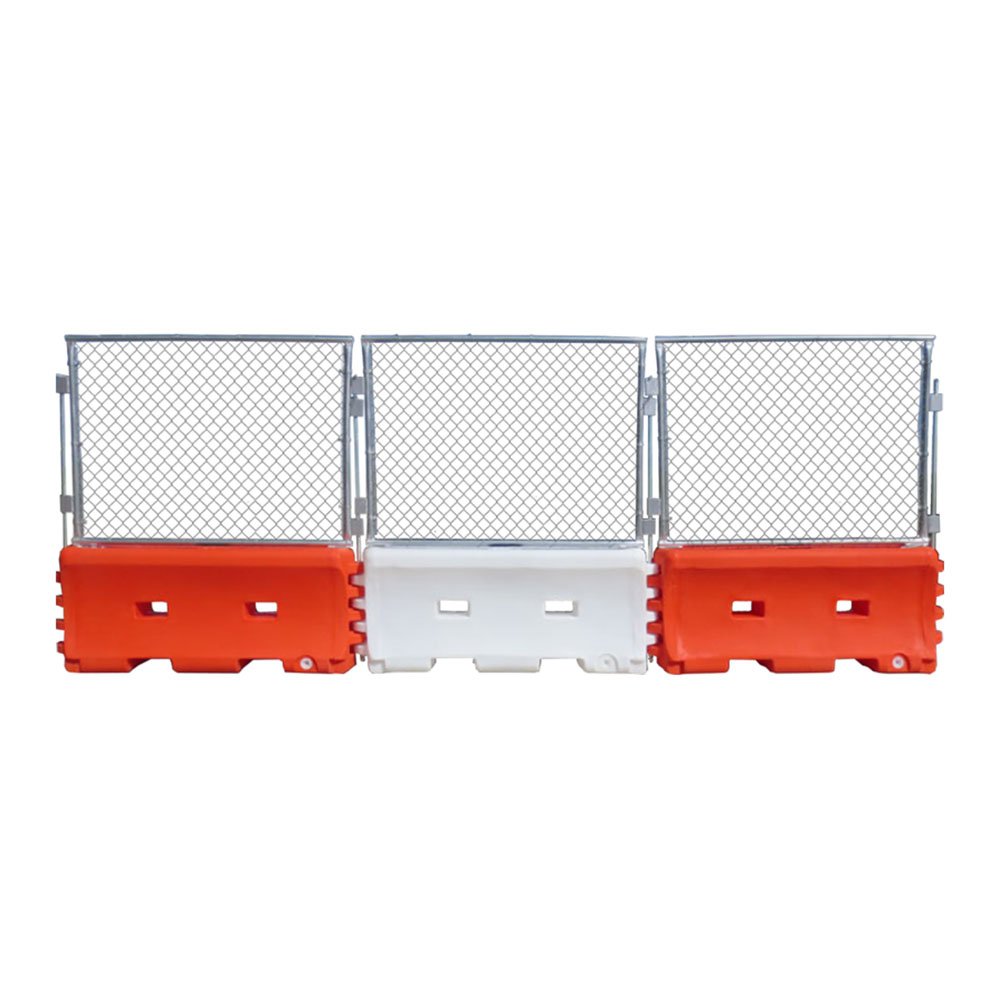

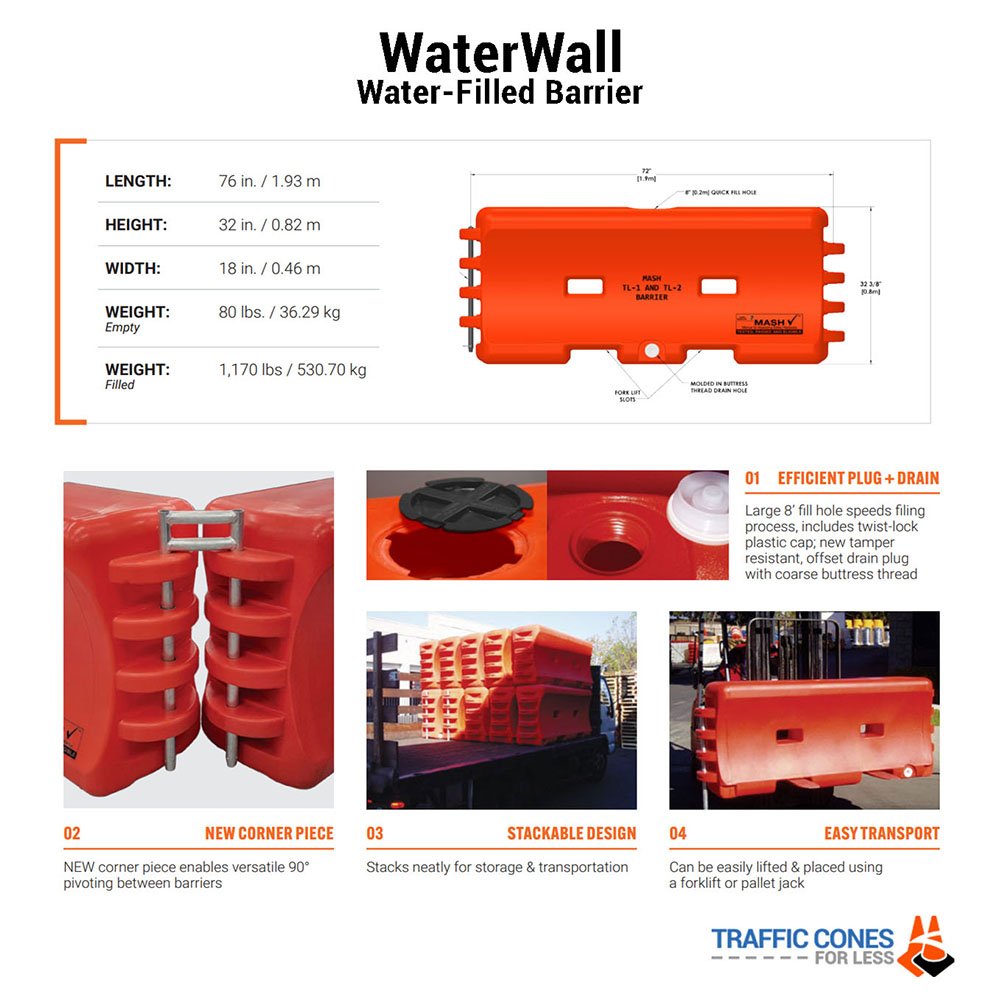

The Water-Wall Barrier is a durable, side-protective, temporary crash barrier system that can be used in many situations, from protecting the public surrounding a construction site to work-zone safety on roads and highways. The Water-Wall can quickly and easily connect directly to the SLED end treatment which negates the need to shield or flare the end of the barrier. For added privacy and security, the Water Wall can be equipped with a plastic or chain-link fence (with extended connection pins).

• Durable polyethylene plastic minimizes cracking and breaking
• Approximately 80 lbs. each (empty weight)
• Water Filled Barriers Weigh approx. 1,100 lbs filled with water
• Molded through holes eliminate bowing when filled with water

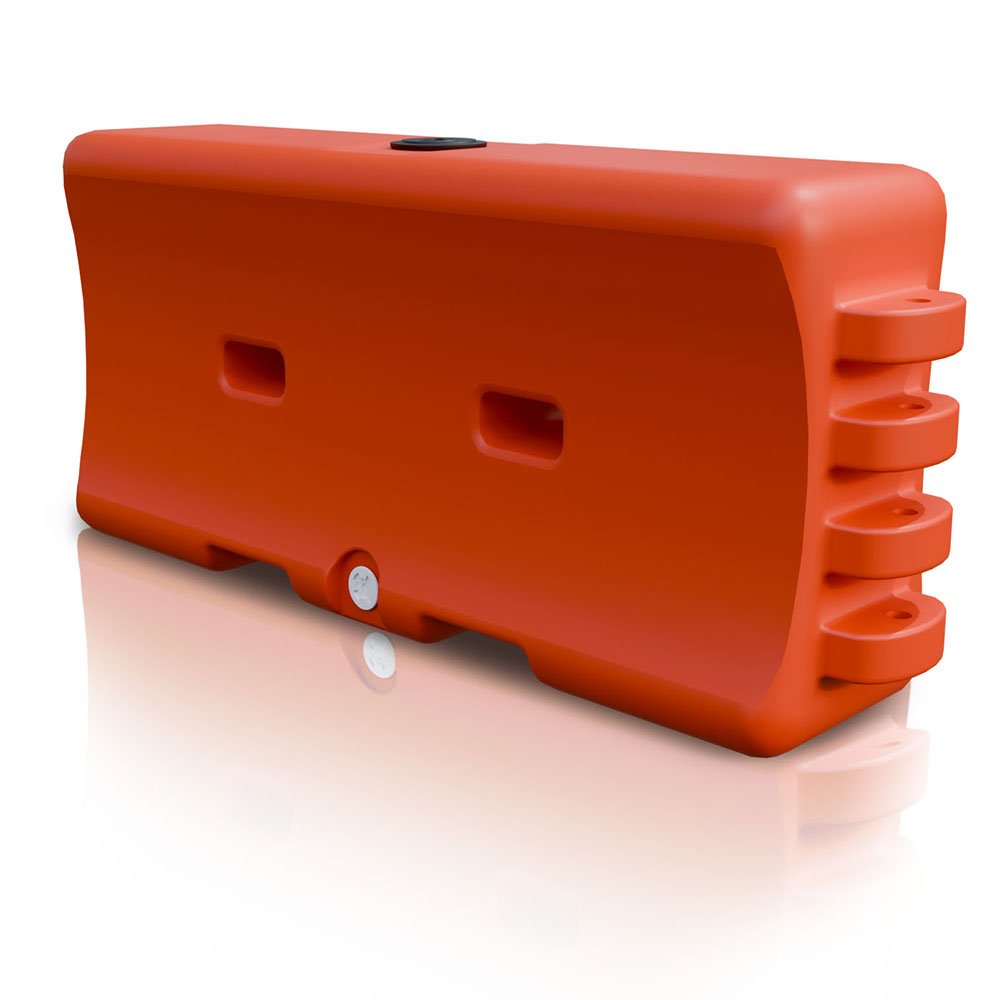

• Double wall knuckle design minimizes breakage at hinge points
• Hinge design allows for a 30° pivot between section
• Large 8" fill hole speeds filling process, includes twist-lock plastic cap
• New tamper-resistant, corner offset drain plug with coarse buttress thread - screws in or out in only 2.5 turns

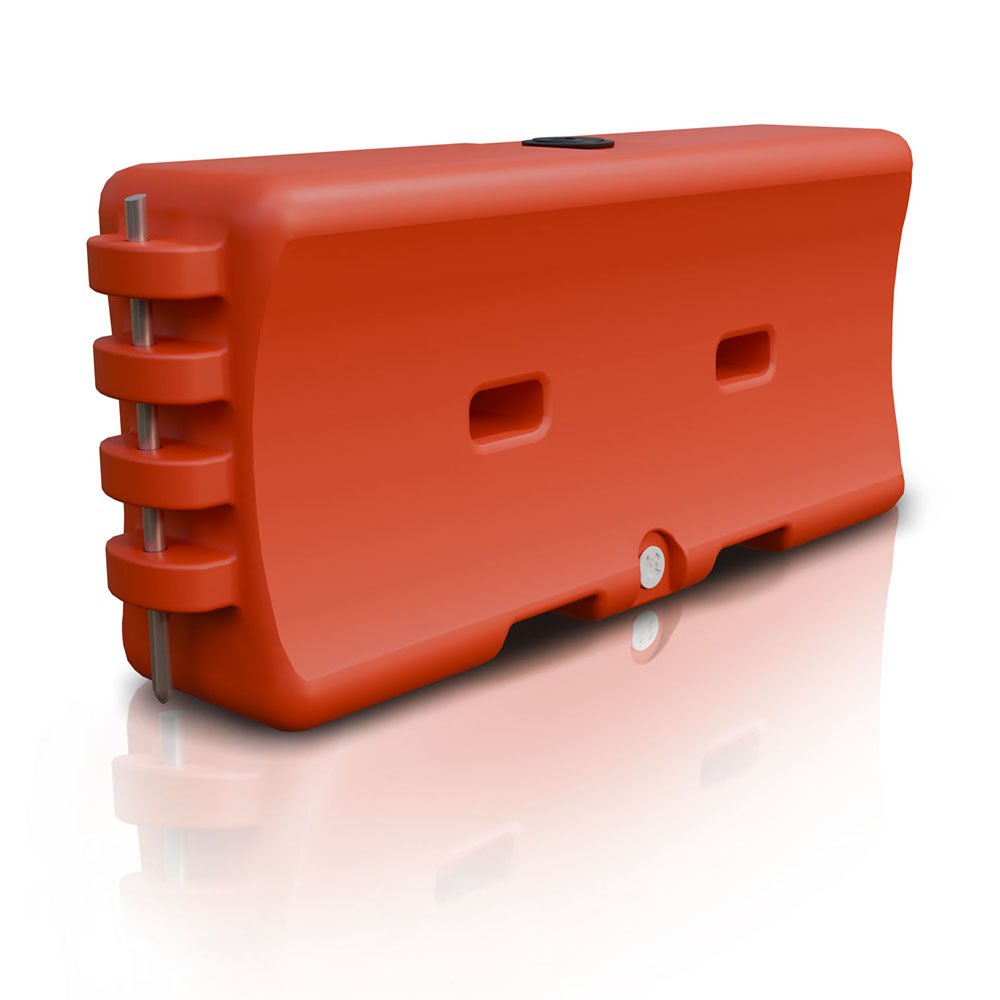

• Includes one steel connection pin that allows sections to be locked together
• Forklift/Pallet Jack slots at the bottom allow for easy movement and transport

1. NCHRP 350-TL-1 Longitudinal Barrier - Test Level 1 temporary barricade with an impact speed of under 31.9 mph
2. NCHRP 350-TL-2 Longitudinal Barricade - Test Level 2 longitudinal barricade with an impact speed of under 44.3 mph
3. NCHRP 350-TL-3 Barricade - Test Level 3 Barricade with an impact speed of over 45mph
