Type I Plastic Panel Barricade w/Reflective Sheeting - BARTY1824-VAR

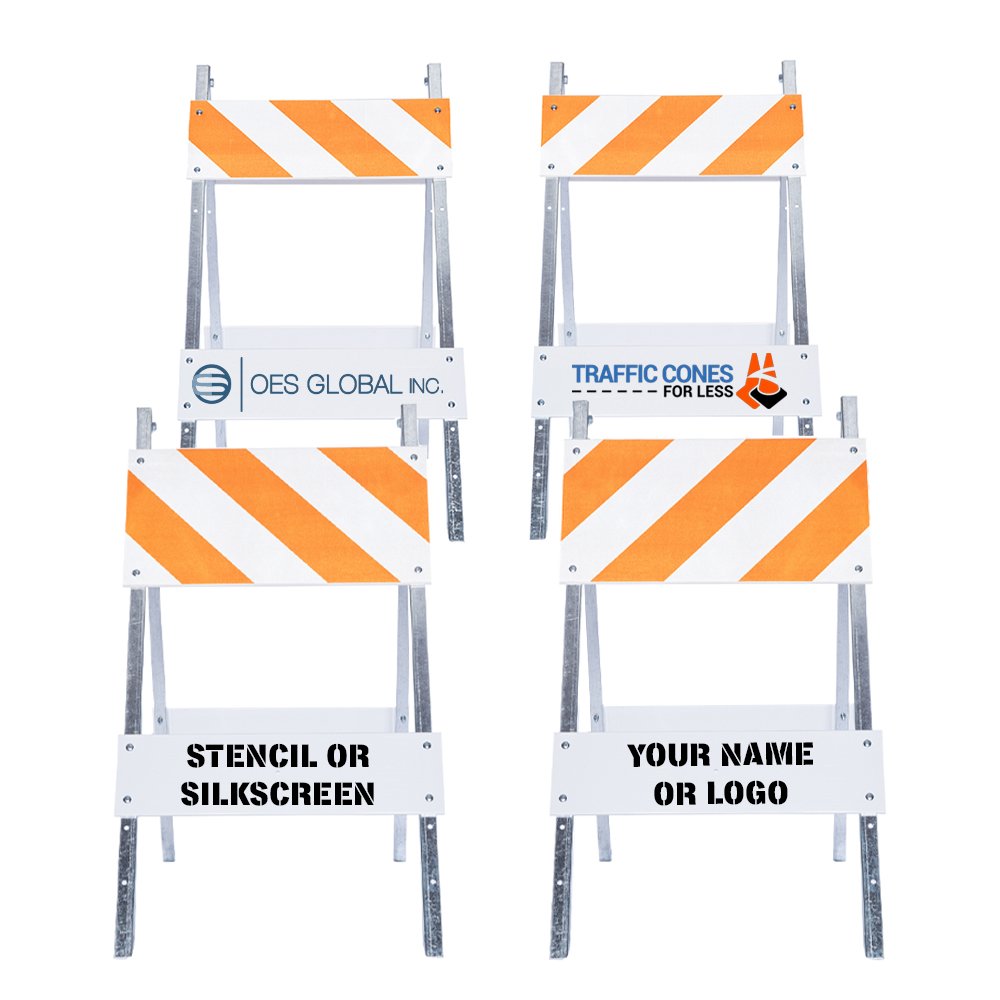

When safety, versatility, and durability are non-negotiable, Type I Waffle Board Barricades rise to the occasion. Rest easy knowing that all our Type I Waffle Board Barricades are NCHRP-350 certified and meticulously crafted to meet MUTCD specifications. When it comes to safety, we leave no room for compromise. With pre-molded bolt holes and a smooth surface, you can customize your barricades effortlessly, saving both time and resources.

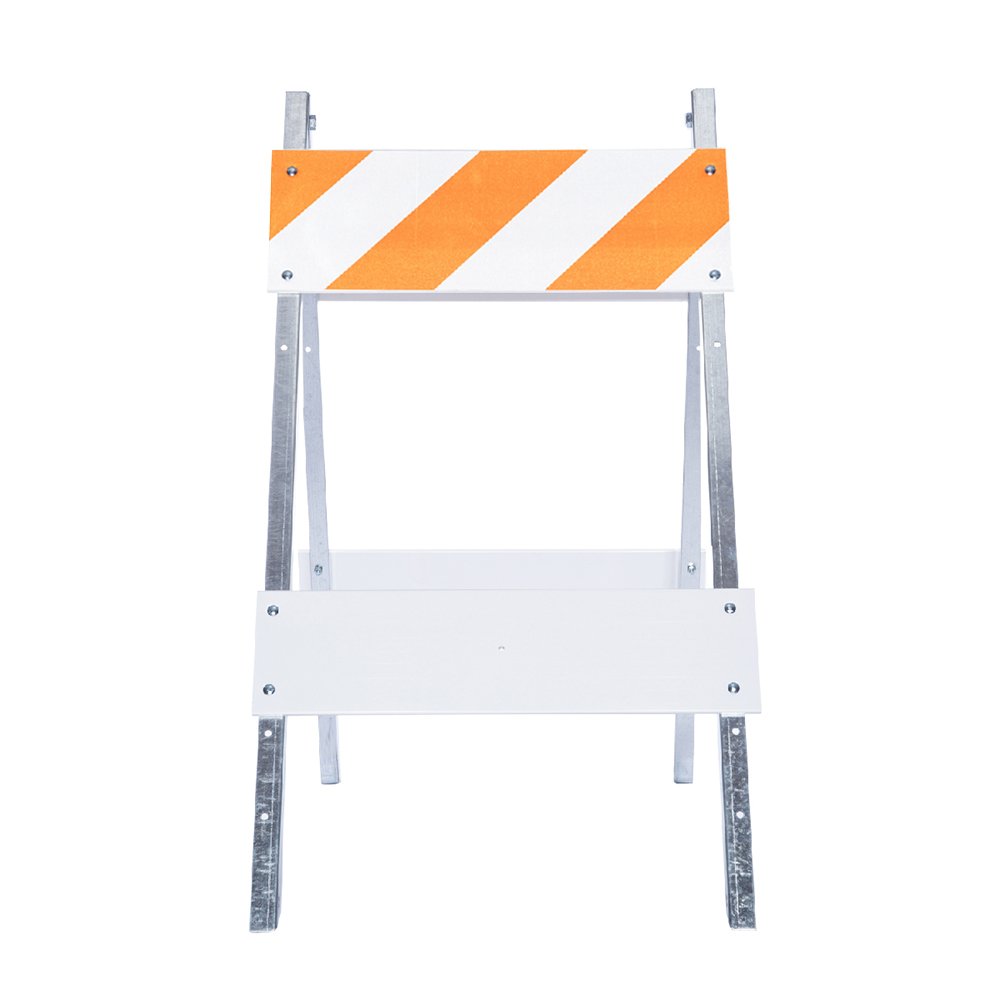

The Type I Barricade is a plastic panel barricade with a metal frame. The panels are made from high-density copolymer polyethylene, which is resistant to impact and can withstand a wide range of environmental conditions. The unique "waffle" pattern of the board enhances its strength and rigidity. The sheeting side of the panel is smooth, allowing for easy application of reflective sheeting. The barricades have been tested and certified to meet the crashworthy requirements of NCHRP-350 and have FHWA Acceptance.

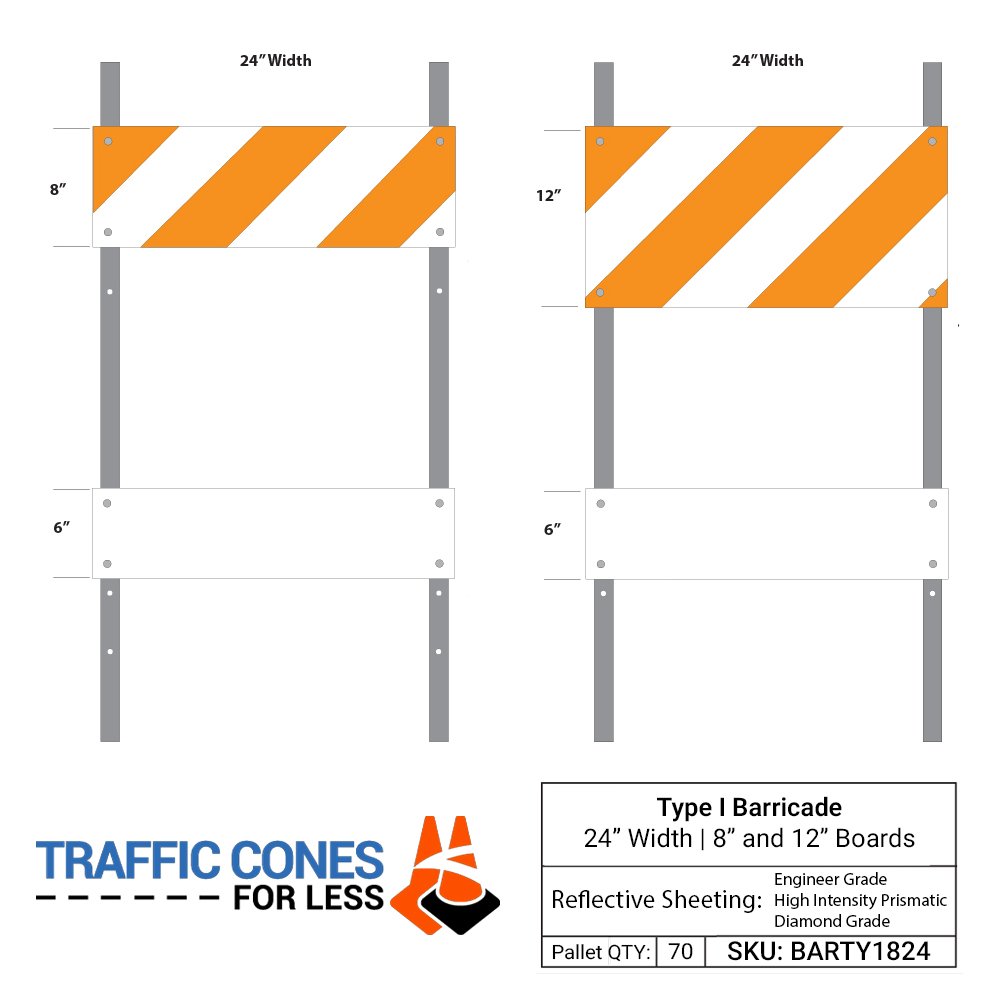

• The Upper panel board is 8"x 24", lower board 6"x24" .

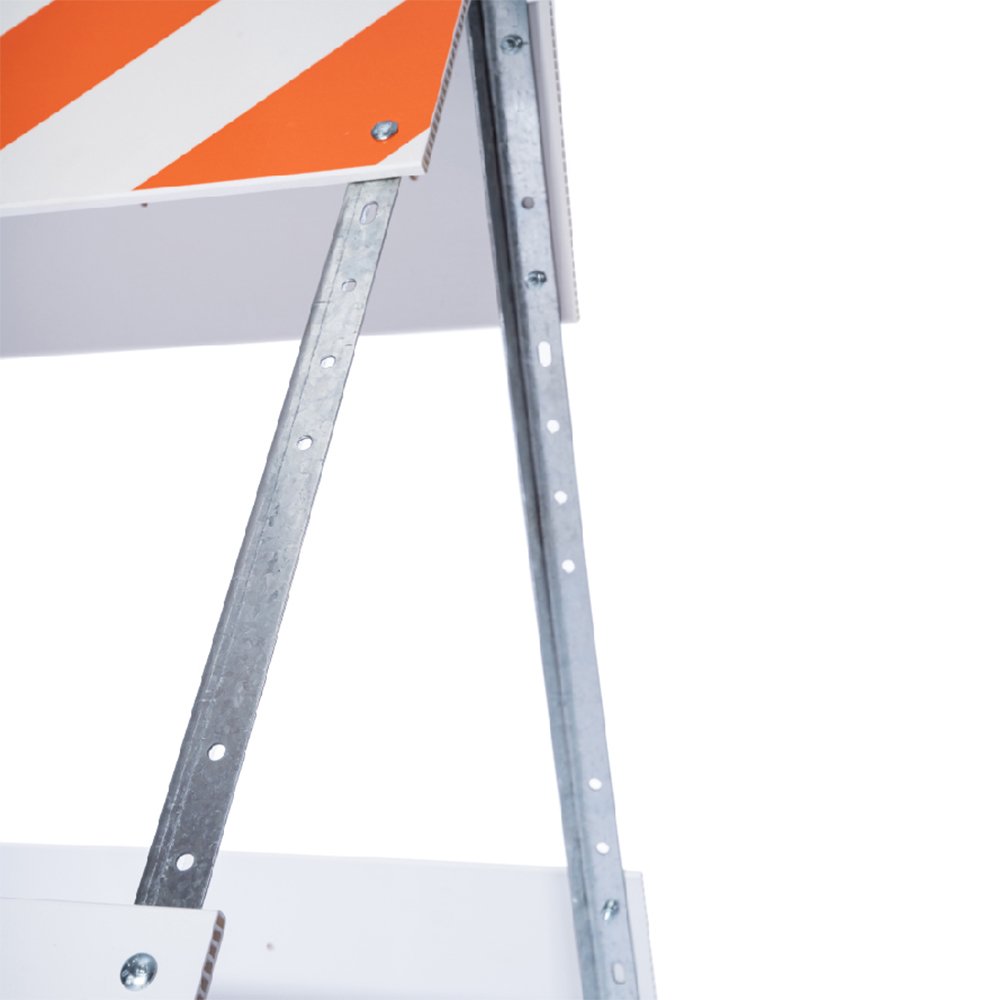

• The legs are made from galvanized steel angle iron or steel roll-formed material.
• The panels are made of high-density copolymer polyethylene with UV inhibitors.
• The panels have a high-impact resistant, unique 'waffle' pattern.
• The material has a brittle temperature of -180°F and a softening temperature of +320°F.
• The legs are 1 1/4" x 14 & 12 gauge.
• The panels have a smooth surface for easy application of reflective sheeting.
• All barricade components are completely interchangeable.

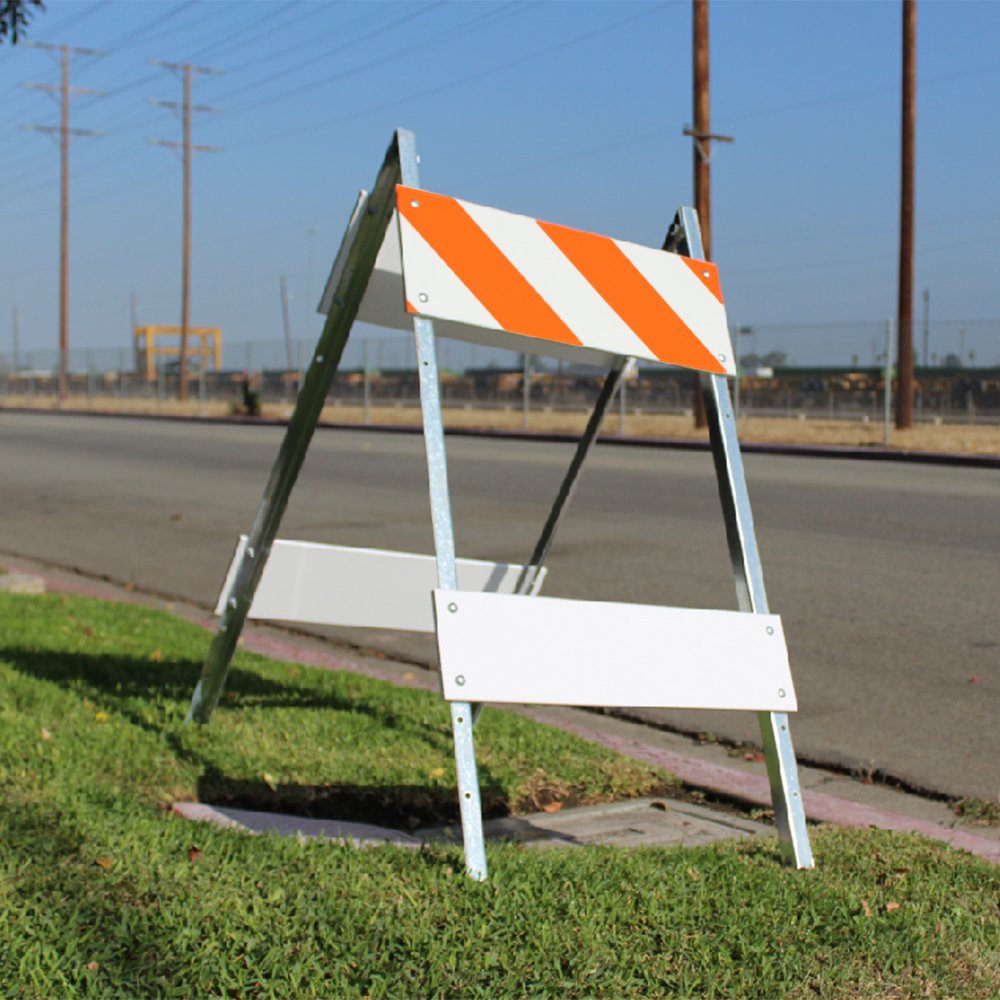

Where can you use the Type I Barricade?
• Construction job sites and road closures
• Public events, parades, and concerts
• School grounds and playgrounds
• Amusement parks and event stadiums
• Municipal and city public works projects
• Bus lane terminals, closures, and shuttle areas
• Utilities installation or main line gas repairs or upgrades
